Description
- Perfect assembly of the board and of all connections.
- Optimized thicknesses to eliminate any aesthetics defects and ensure the protection of the electronics inside.
- Snap-on closing system ensures an easy and pratical closure of the enclosures, but it is also supplied with screws to make the closure more sure and safe.
- Fully cooled through aeration slots in the whole area, that allow proper air circulation and the optimal internal ventilation
- Flame retardant ABS+PC (V0) to grant the maximum safety under all conditions of use.
Details
Products
| |
|---|---|
| Model |

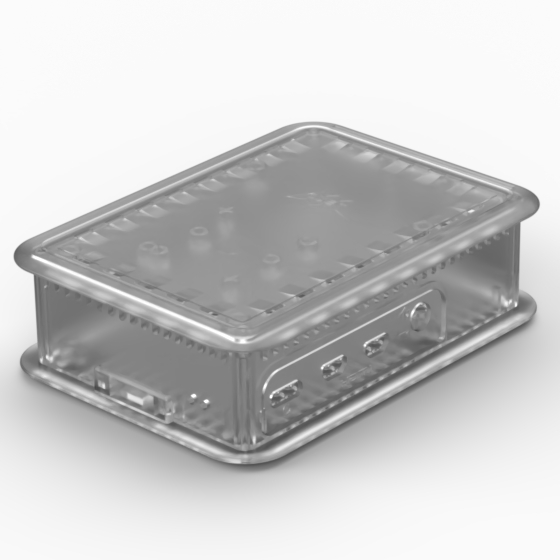

TEK-BERRY4.0 NEW |
| L (mm) | 100,8 |
| W (mm) | 73,7 |
| H (mm) | 29,25 |
| Color (Ral) |
- |
| Material | ASYBLEND T65 |
| MAX PCB L (mm) | |
| MAX PCB W (mm) | |
| Screws | 4 |
| Battery | |
| Accessories |
RPI-VESA RPI-CAM RPI-COOLKIT RPI4-FP RPI4-SP RPI4-SPACER |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model |

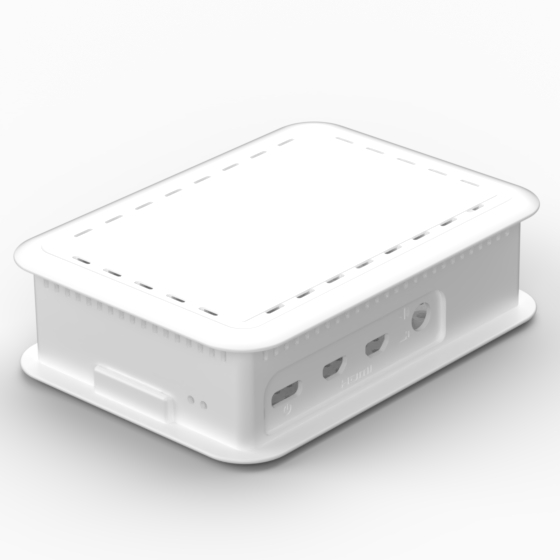

TEK-BERRY4.40 NEW |
| L (mm) | 100,8 |
| W (mm) | 73,7 |
| H (mm) | 29,25 |
| Color (Ral) |
50719 |
| Material | ASYBLEND T65 |
| MAX PCB L (mm) | |
| MAX PCB W (mm) | |
| Screws | 4 |
| Battery | |
| Accessories |
RPI-VESA RPI-CAM RPI-COOLKIT RPI4-FP RPI4-SP RPI4-SPACER |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model |

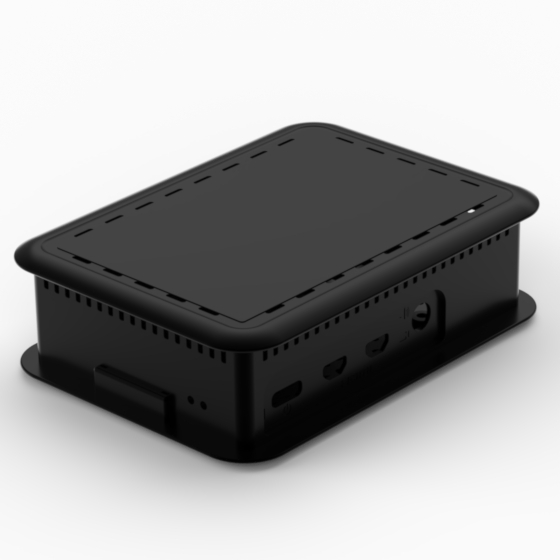

TEK-BERRY4.9 NEW |
| L (mm) | 100,8 |
| W (mm) | 73,7 |
| H (mm) | 29,25 |
| Color (Ral) |
9004 |
| Material | ASYBLEND T65 |
| MAX PCB L (mm) | |
| MAX PCB W (mm) | |
| Screws | 4 |
| Battery | |
| Accessories |
RPI-VESA RPI-CAM RPI-COOLKIT RPI4-FP RPI4-SP RPI4-SPACER |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model |

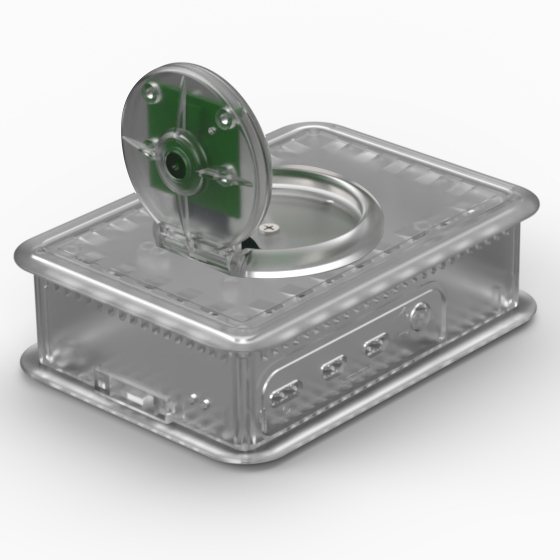

TEK-CAM4.0 NEW |
| L (mm) | 100,8 |
| W (mm) | 73,7 |
| H (mm) | 29,25 |
| Color (Ral) |
- |
| Material | ASYBLEND T65 |
| MAX PCB L (mm) | |
| MAX PCB W (mm) | |
| Screws | 4 |
| Battery | |
| Accessories |
RPI-VESA RPI-COOLKIT RPI4-FP RPI4-SP |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model |

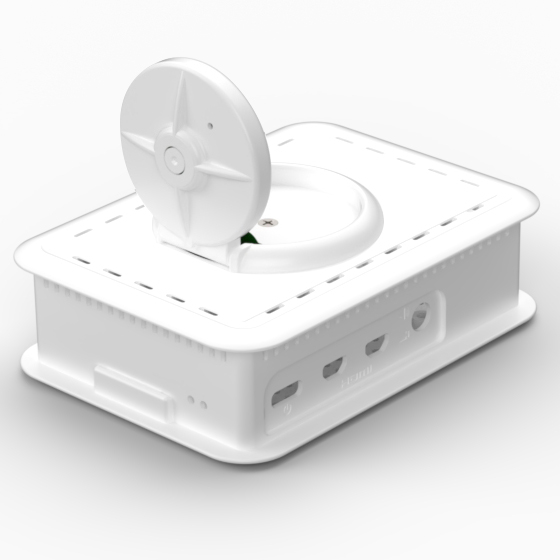

TEK-CAM4.40 NEW |
| L (mm) | 100,8 |
| W (mm) | 73,7 |
| H (mm) | 29,25 |
| Color (Ral) |
50719 |
| Material | ASYBLEND T65 |
| MAX PCB L (mm) | |
| MAX PCB W (mm) | |
| Screws | 4 |
| Battery | |
| Accessories |
RPI-VESA RPI-COOLKIT RPI4-FP RPI4-SP |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model |
TEK-CAM4.9 NEW |
| L (mm) | 100,8 |
| W (mm) | 73,7 |
| H (mm) | 29,25 |
| Color (Ral) |
9004 |
| Material | ASYBLEND T65 |
| MAX PCB L (mm) | |
| MAX PCB W (mm) | |
| Screws | 4 |
| Battery | |
| Accessories |
RPI-VESA RPI-COOLKIT RPI4-FP RPI4-SP |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TEK-BERRY4.0 NEW |
100,8 | 73,7 | 29,25 |
- |
ASYBLEND T65 | 4 |
RPI-VESA RPI-CAM RPI-COOLKIT RPI4-FP RPI4-SP RPI4-SPACER |
PDF DWG |
View
|
|||
|
|
TEK-BERRY4.40 NEW |
100,8 | 73,7 | 29,25 |
50719 |
ASYBLEND T65 | 4 |
RPI-VESA RPI-CAM RPI-COOLKIT RPI4-FP RPI4-SP RPI4-SPACER |
PDF DWG |
View
|
|||
|
|
TEK-BERRY4.9 NEW |
100,8 | 73,7 | 29,25 |
9004 |
ASYBLEND T65 | 4 |
RPI-VESA RPI-CAM RPI-COOLKIT RPI4-FP RPI4-SP RPI4-SPACER |
PDF DWG |
View
|
|||
|
|
TEK-CAM4.0 NEW |
100,8 | 73,7 | 29,25 |
- |
ASYBLEND T65 | 4 |
RPI-VESA RPI-COOLKIT RPI4-FP RPI4-SP |
PDF DWG |
View
|
|||
|
|
TEK-CAM4.40 NEW |
100,8 | 73,7 | 29,25 |
50719 |
ASYBLEND T65 | 4 |
RPI-VESA RPI-COOLKIT RPI4-FP RPI4-SP |
PDF DWG |
View
|
|||
|
|
TEK-CAM4.9 NEW |
100,8 | 73,7 | 29,25 |
9004 |
ASYBLEND T65 | 4 |
RPI-VESA RPI-COOLKIT RPI4-FP RPI4-SP |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
