Description

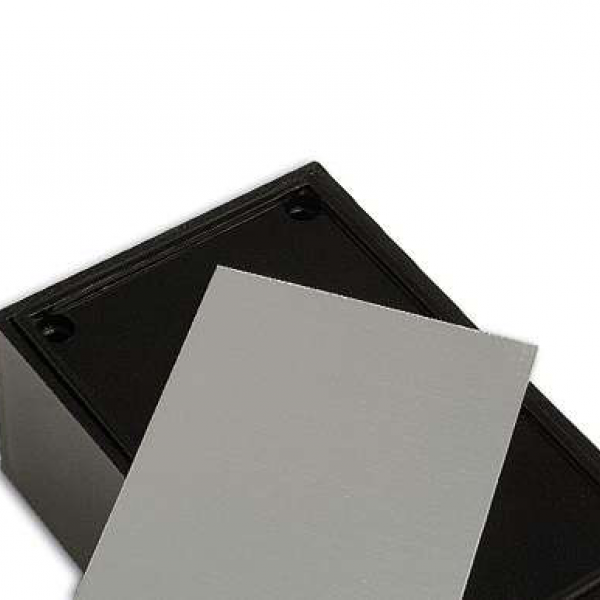

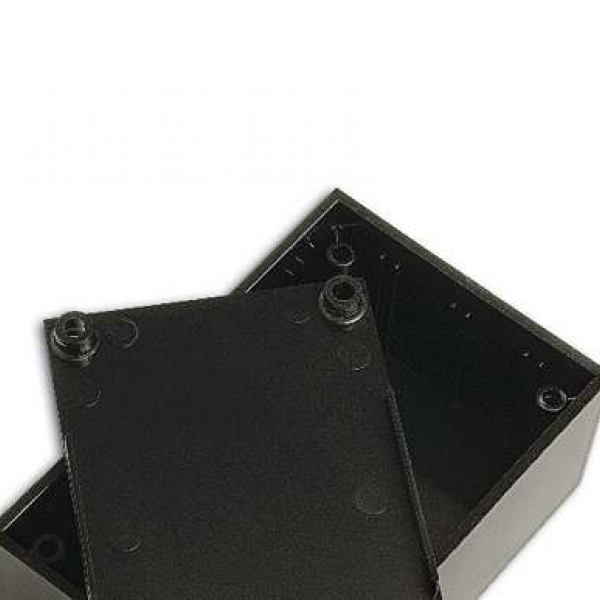

ABS enclosures with a plastic cover and an aluminium panel. Glossy surface finish. The cover has a recessed area to hold an 0.5 mm anodized aluminium panel. The base walls have integral PCB guides. Closing by four screws.
Details
Products
| |
|---|---|

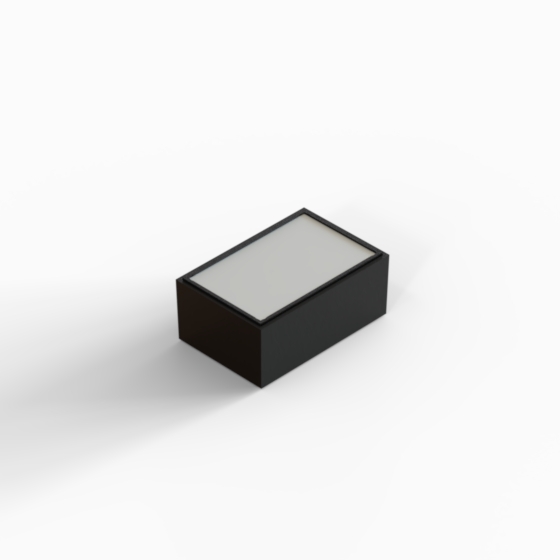

| Model | 151/P.9 |
| L (mm) | 85 |
| W (mm) | 56 |
| H (mm) | 36,6 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - 1640 AS |
| MAX PCB L (mm) | 80 |
| MAX PCB W (mm) | 25 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

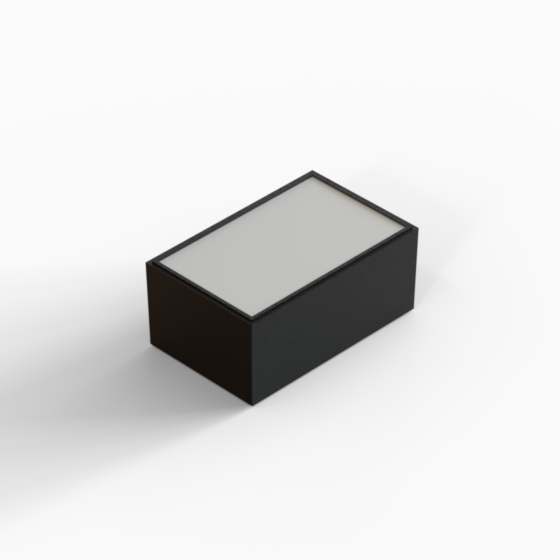

| Model | 152/P.9 |
| L (mm) | 110 |
| W (mm) | 70 |
| H (mm) | 48,9 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - 1640 AS |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 37 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 153/P.9 |
| L (mm) | 160 |
| W (mm) | 96 |
| H (mm) | 63,2 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - 1640 AS |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 49 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 154/P.9 |
| L (mm) | 215 |
| W (mm) | 130 |
| H (mm) | 79,4 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - 1640 AS |
| MAX PCB L (mm) | 208 |
| MAX PCB W (mm) | 64,5 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
151/P.9 | 85 | 56 | 36,6 |
9004 |
ALLOY 6060 - 1640 AS | 80 | 25 | 4 | - |
PDF DWG |
View
|
|
|
|
152/P.9 | 110 | 70 | 48,9 |
9004 |
ALLOY 6060 - 1640 AS | 103,5 | 37 | 4 | - |
PDF DWG |
View
|
|
|
|
153/P.9 | 160 | 96 | 63,2 |
9004 |
ALLOY 6060 - 1640 AS | 154 | 49 | 4 | - |
PDF DWG |
View
|
|
|
|
154/P.9 | 215 | 130 | 79,4 |
9004 |
ALLOY 6060 - 1640 AS | 208 | 64,5 | 4 | - |
PDF DWG |
View
|
